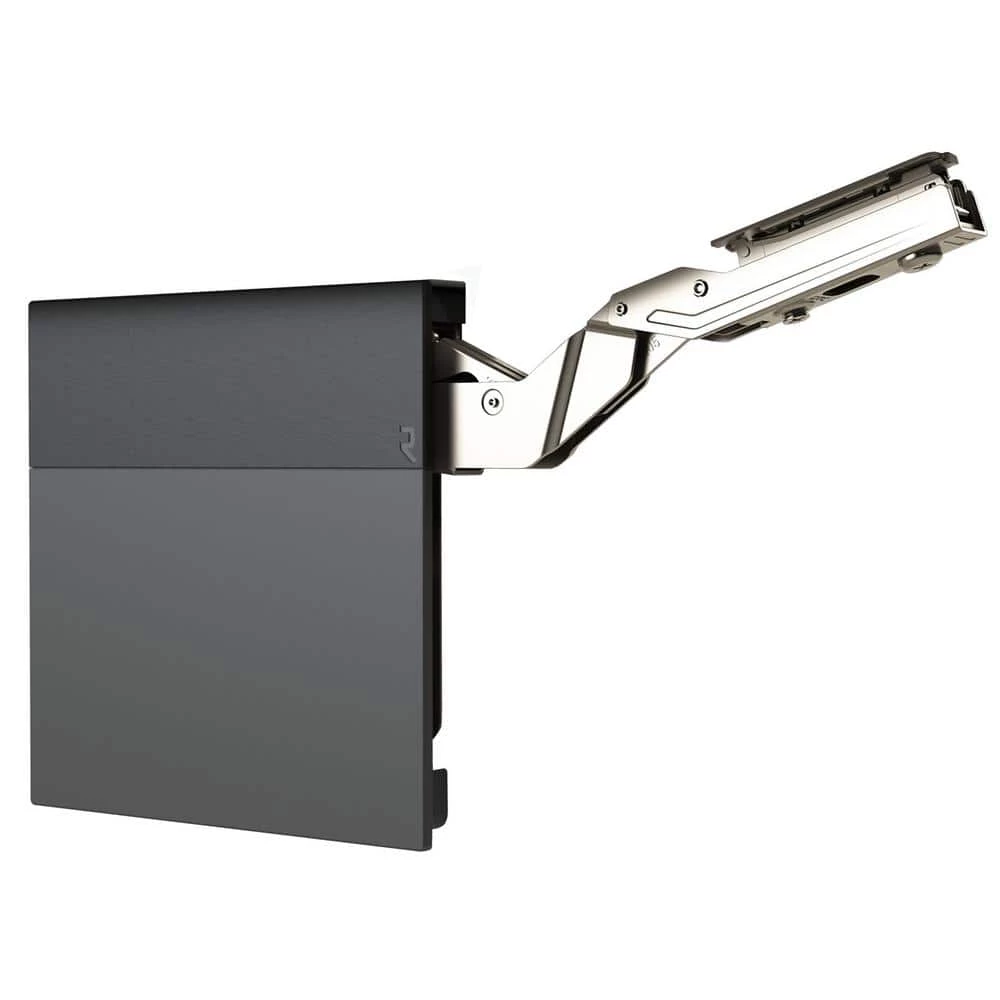

Richelieu Hardware Atmos Series Anthracite Soft-Close Medium-Duty Overlay for Frameless Cabinet Lift-Up Hinge (1-Pair)
Original price was: $48.40.$33.40Current price is: $33.40.
Concealed lift-up hinge for variable overlay applications
Soft-closing mechanism ensures your doors always close gently
Sold per pair, for frameless cabinets with vertical openings
- The home of quality products.
- Sustainable materials, for a better tomorrow.
- Quality at its Finest
- Fast, friendly, always here to help.

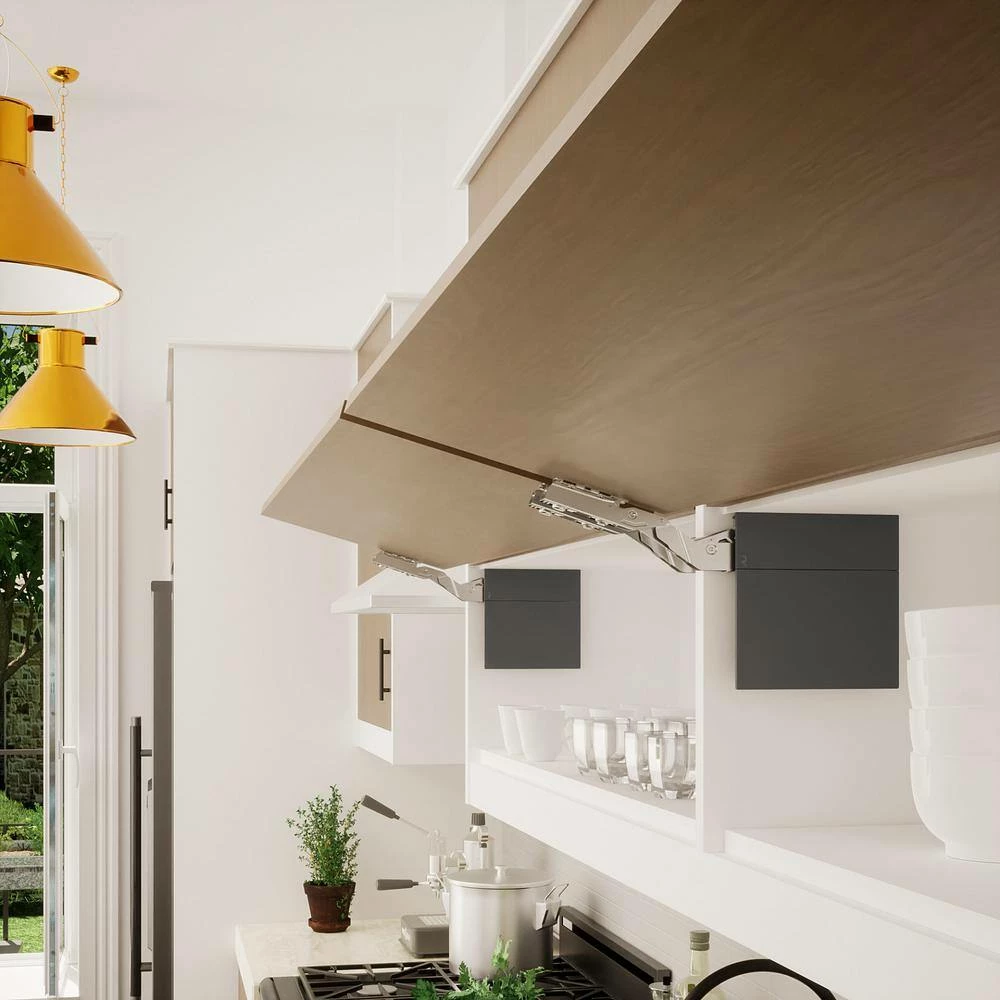

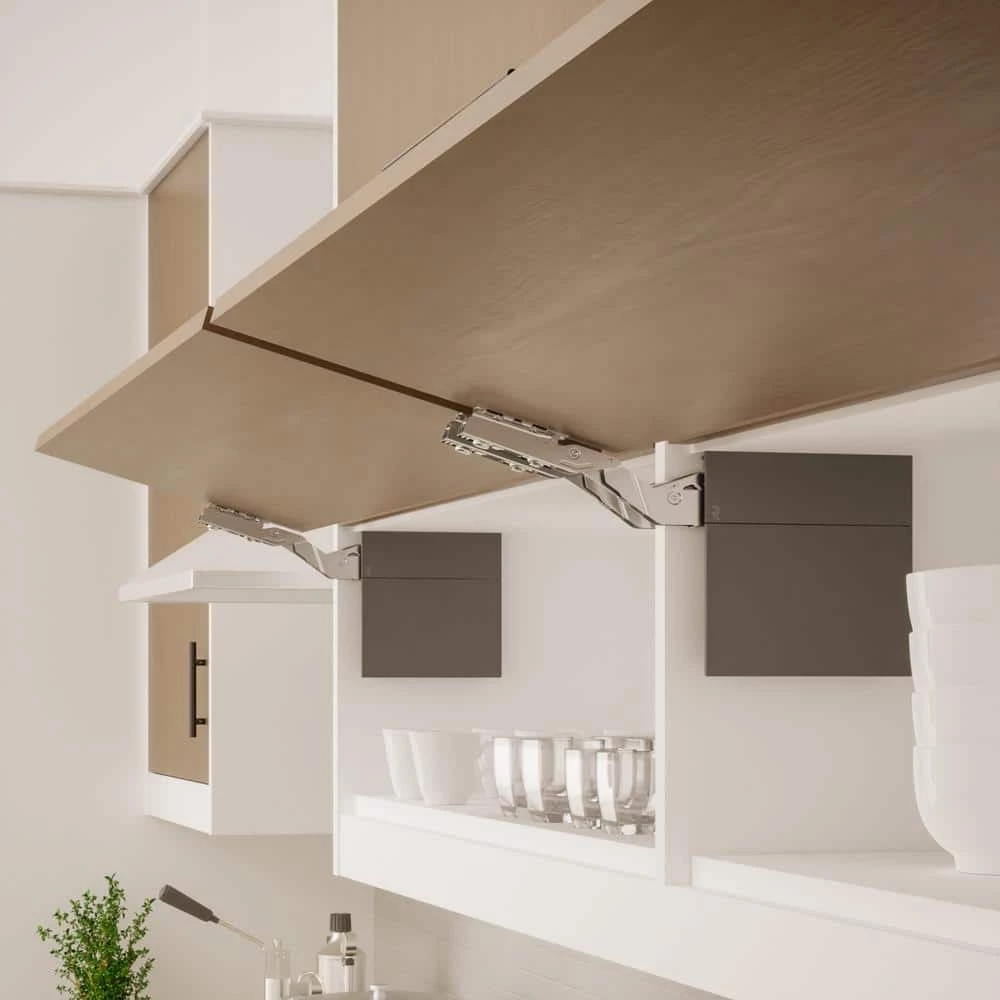

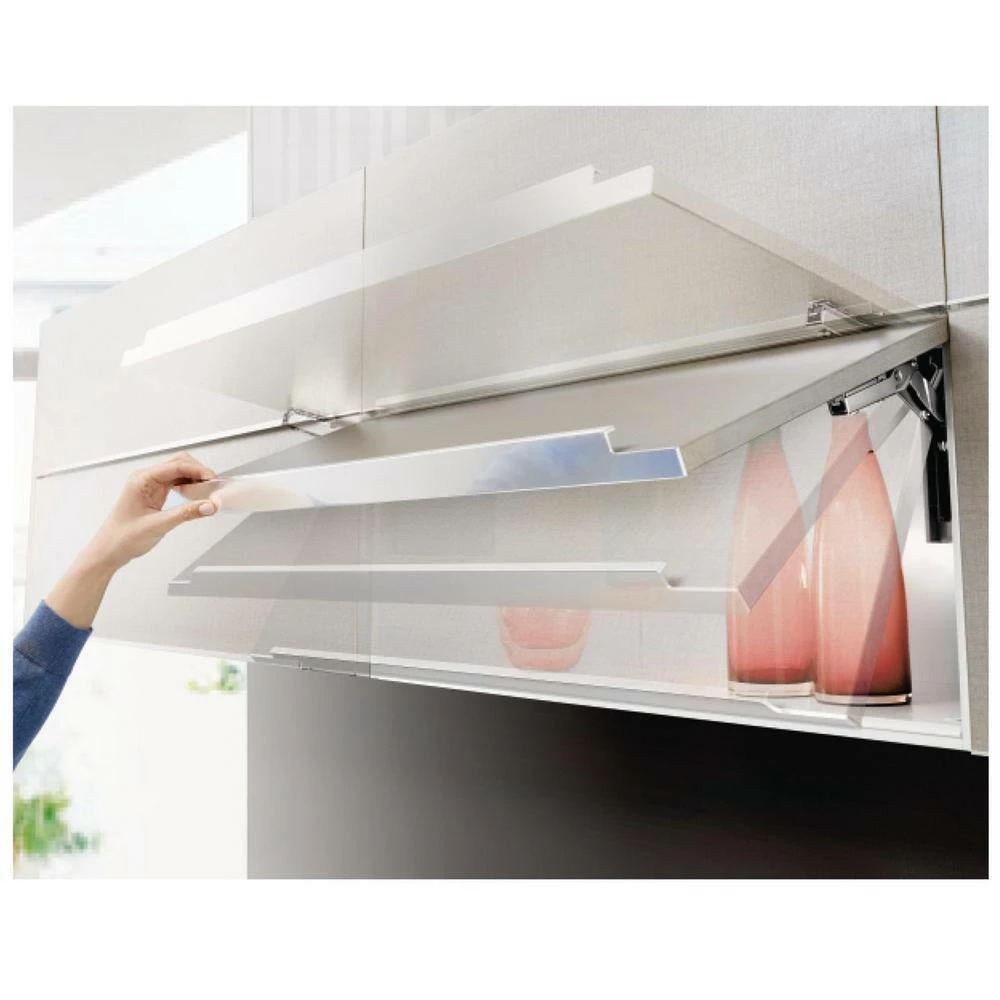

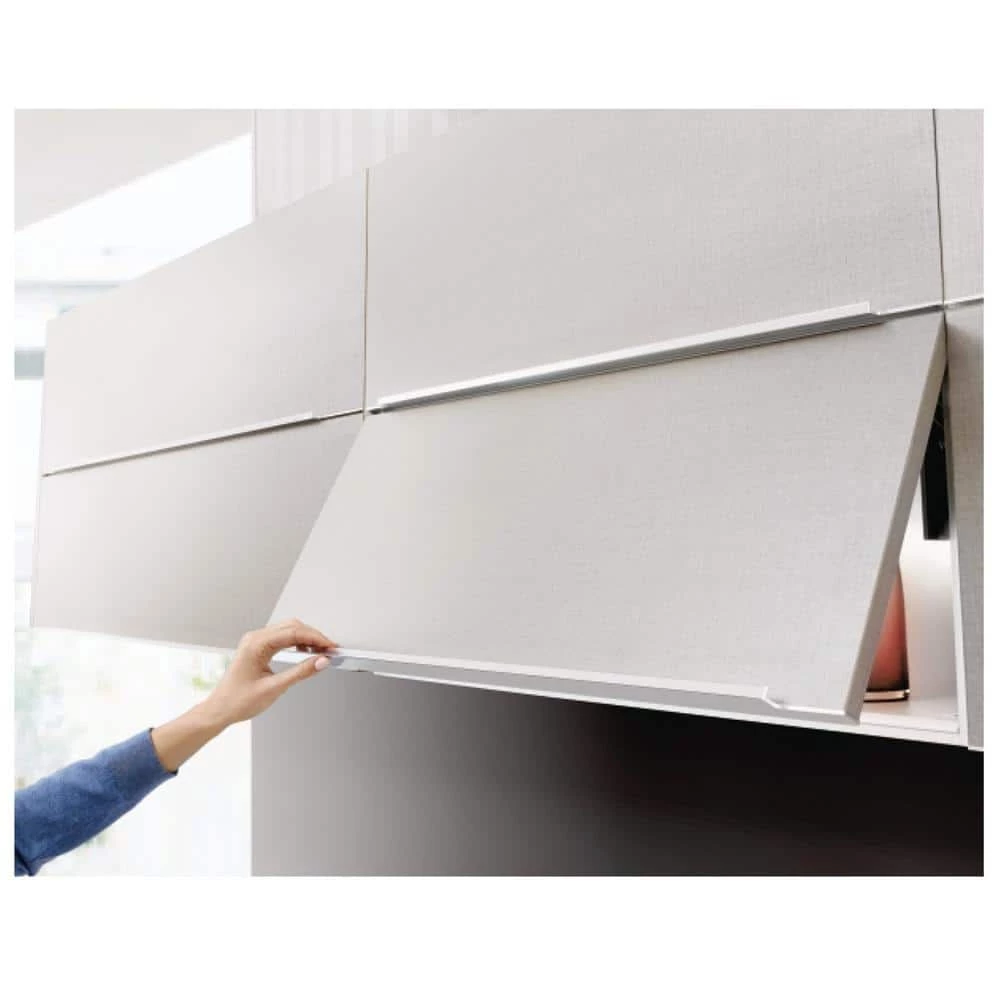

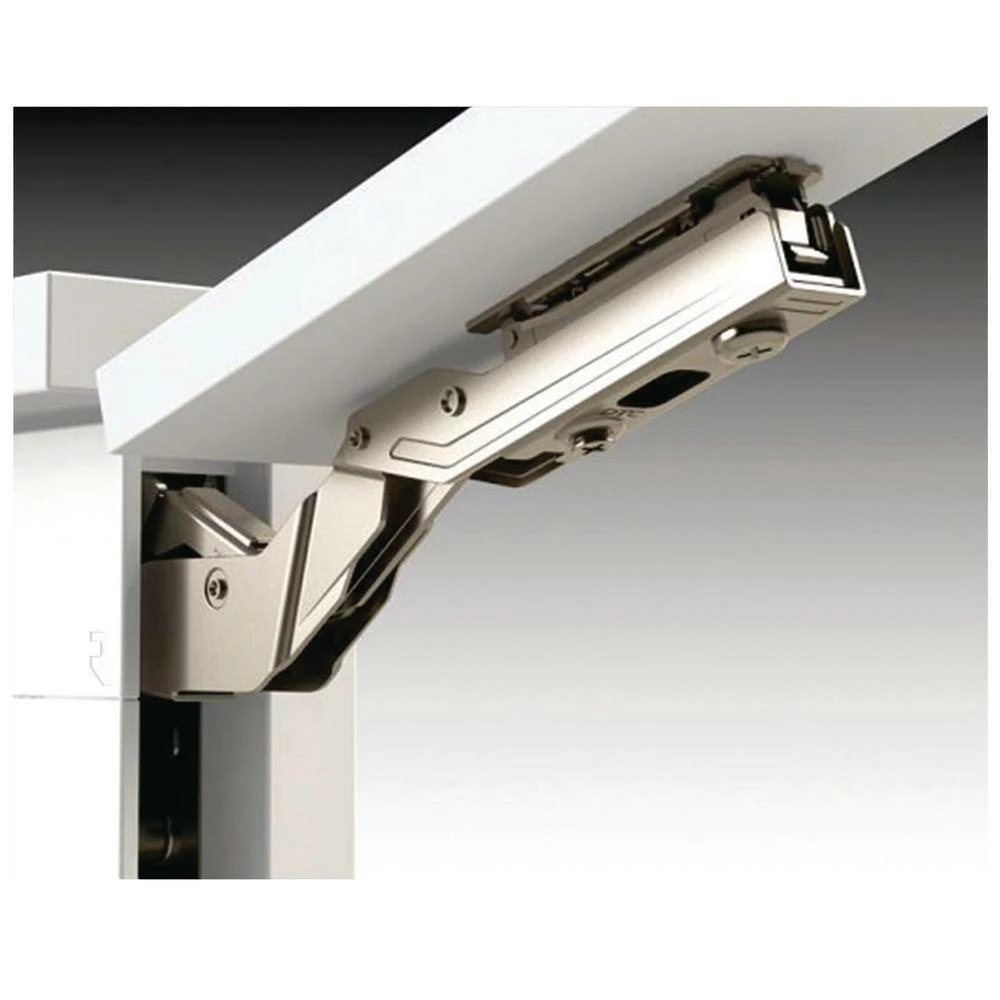

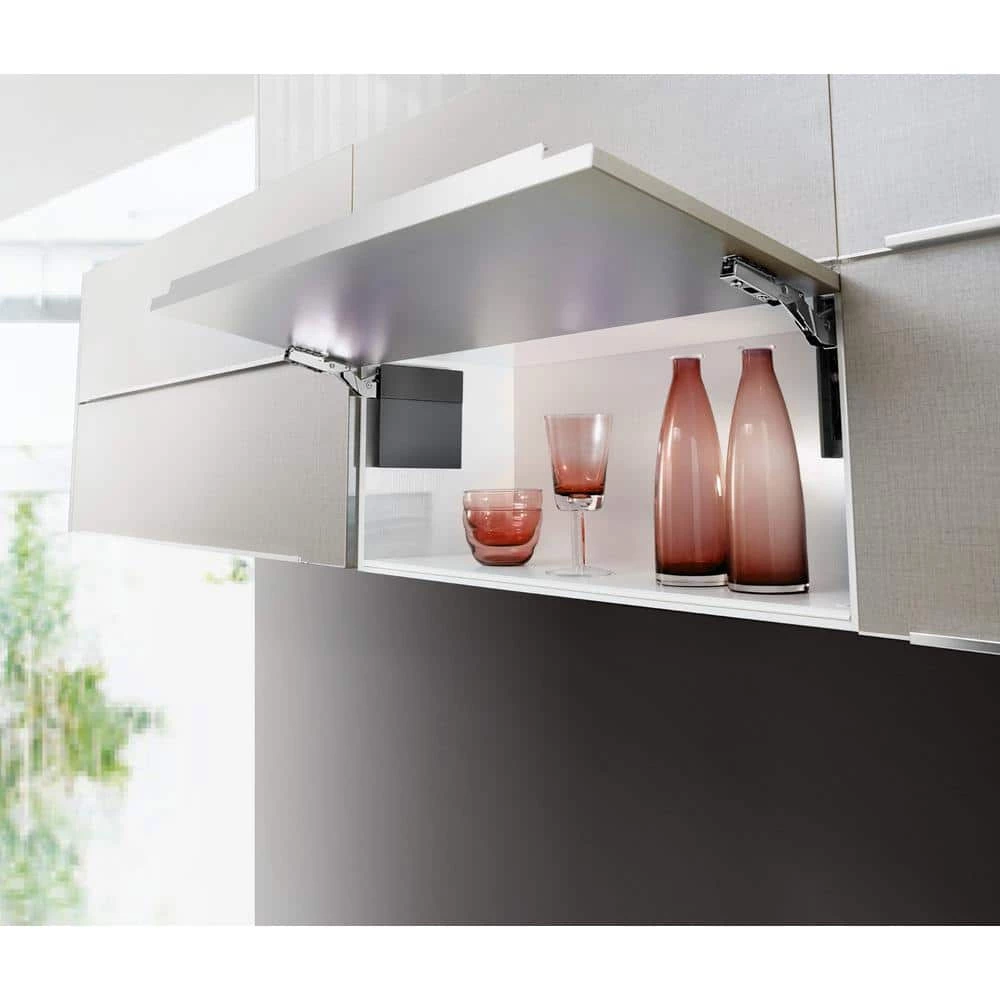

The Atmos opening system is designed to allow an ascending opening of a drawer door or kitchen cabinet door. Discreet and elegant, the Atmos opening system includes a hinge-free mechanism that is easy to install in your cabinet thanks to the included drilling template. This system offers an integrated soft-close mechanism to prevent doors from slamming.
- Smooth opening without resistance
- Stays open in any position
- Tested and certified (60 000 cycles), Atmos is covered by Richelieu Hardware’s limited lifetime warranty
- Opening Angle: 107°
- Mechanism Strength: Medium Weight
- Hinge Type: Lift-Up Opening with Stay Open and Soft-Close functions
- Door Type: For wood doors and wide aluminum-framed doors
- Door Height: 7 7/8 in to 19 5/8 in (200 mm to 500 mm)
- Door Length: max 47 1/4 in (1200 mm)
- Finish: Dark Gray, made of Metal and Plastic
- Included: 2 mechanisms, 2 caps, 2 door adaptors, mounting hardware and drilling template are included for an easy installation
| Builders Hardware Product Type | Cabinet hinge |
|---|---|
| Material | Steel |
| Product Height (in.) | 6.57 in |
| Product Depth (in.) | 6.61 in |
| Manufacturer Warranty | Lifetime Limited Warranty |
| Returnable | 90-Day |
| Package Quantity | 2 |
| Number of Holes | 6 |
| Hinge Visibility | Hidden |
| Cabinet Door Type | Variable Overlay |
| Hinge Type | Variable Overlay |
| Hinge Opening (Degrees) | 107 |
| Hardware Finish Family | Matte |
| Hardware Color Family | Gray |
| Finish | Anthracite |
| Features | Soft Close |
| Cabinet Frame Type | Frameless |
| Product Width (in.) | 1.18 in |
