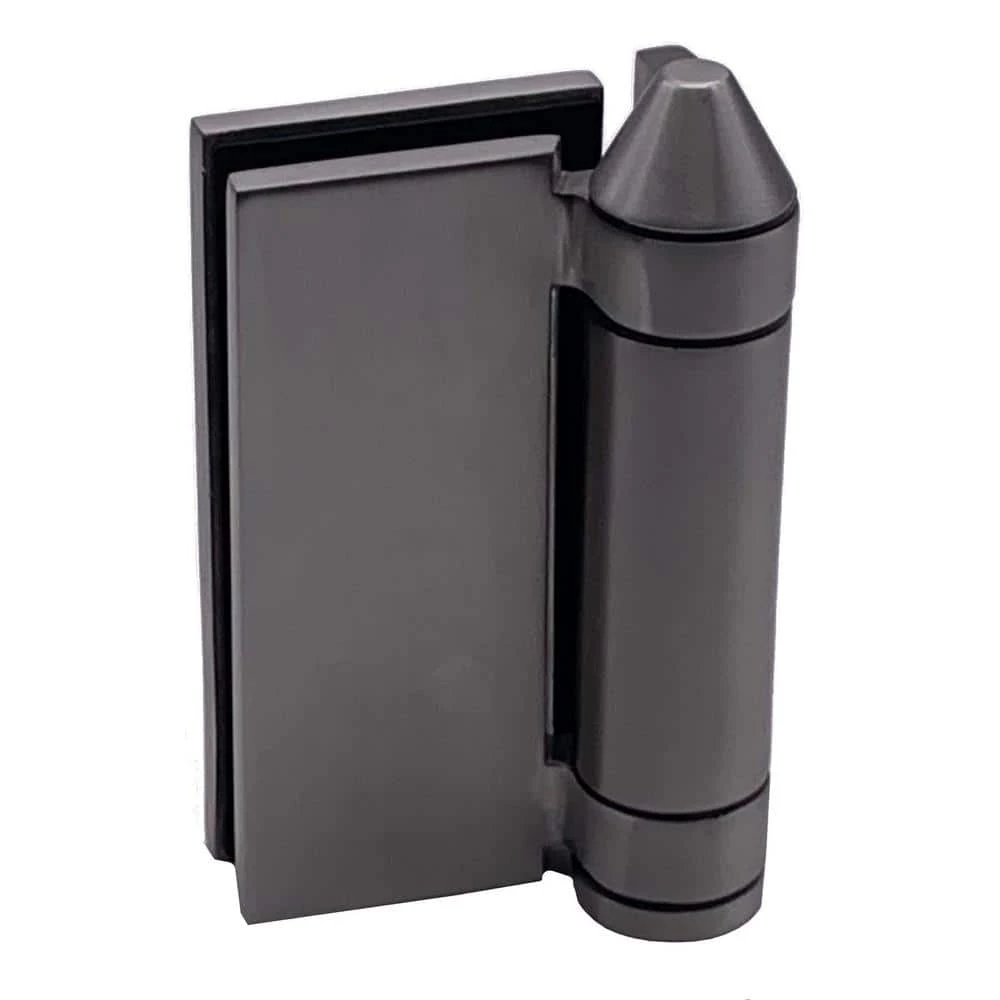

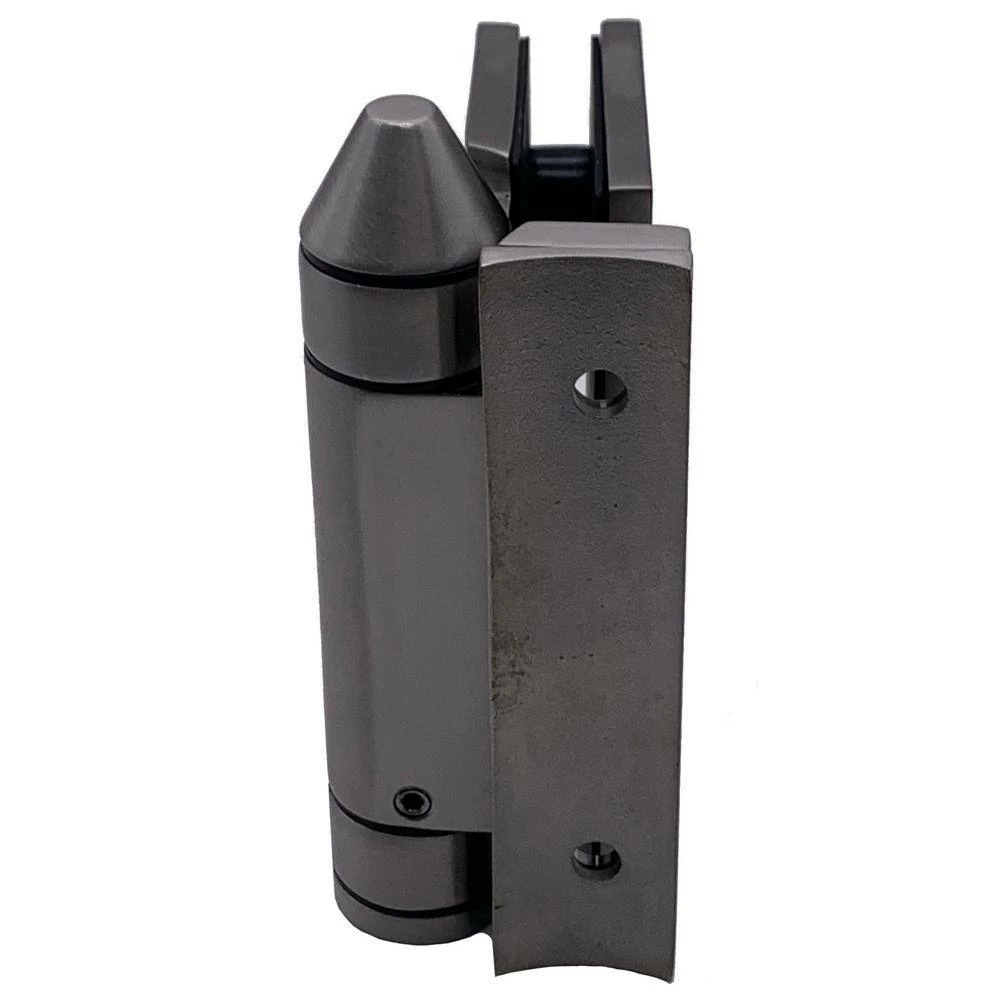

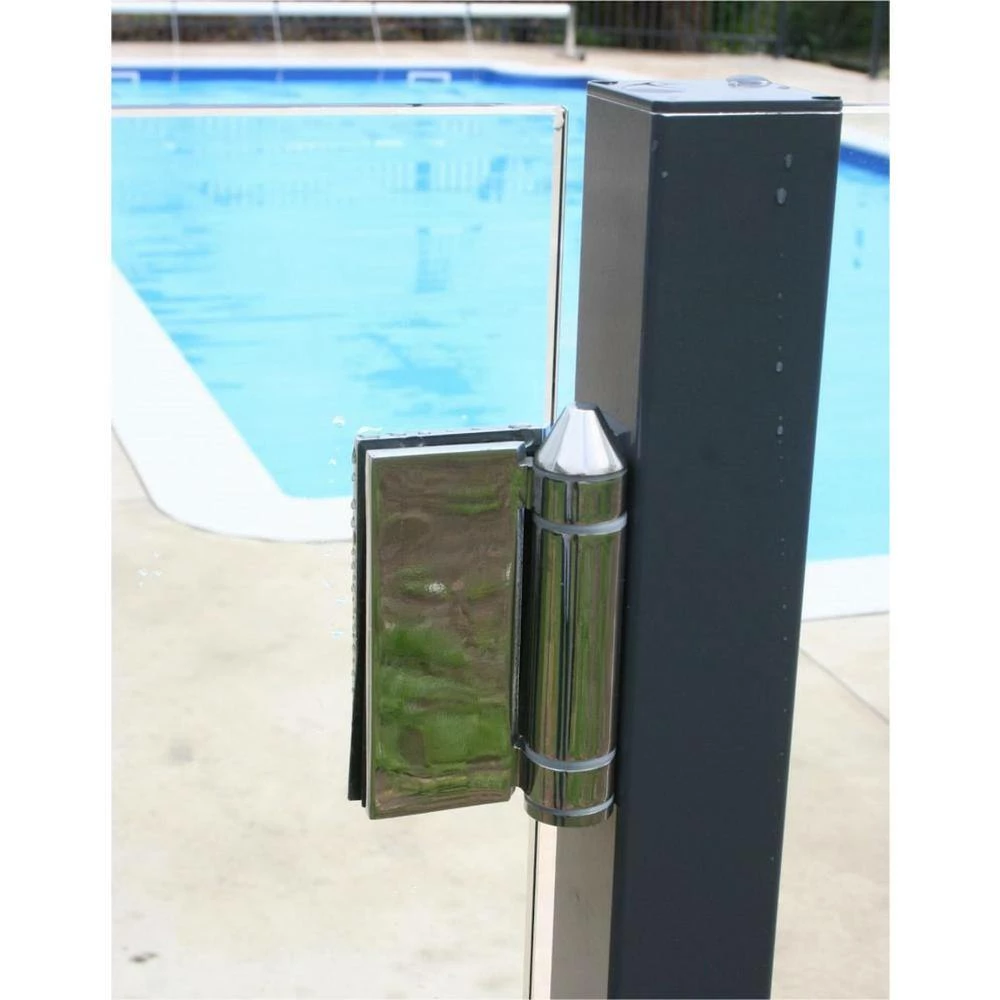

90° Pool Gate Hinge with adjustable tension. Designed to open outward and to be installed on a post (round or square) or on a wall. In order to adjust the tension, simply remove the coned cap.
- Gives an exceptional clear view in exterior spaces
- Ideal for use on pool gates
- Weatherproof
- Using a spring-loaded hinge along with a magnetic latch maximizes security and reduces water access, these components help prevent drowning, but do not replace close monitoring
- Recommended for: interior and exterior usage
- Safety glass thickness: 13/32 in. to 15/32 in. (10 mm to 12 mm)
- Mounting side: right side
- Weight capacity for 2 hinges: max 88 lbs. (40 kg)
- Recommended door width: maximum 39-3/8 in (1000 mm)
- Product dimensions – height x length x width: 4-17/32 in (115 mm) x 2-3/4 in (70 mm) x 1-25/32 in (45 mm)
- Milling diameter: 5/8 in. (16 mm)
- Center to center measurement (distance between the drill holes): 2-19/32 in. (66 mm)
- Finish: stainless steel, made of 316 grade stainless steel

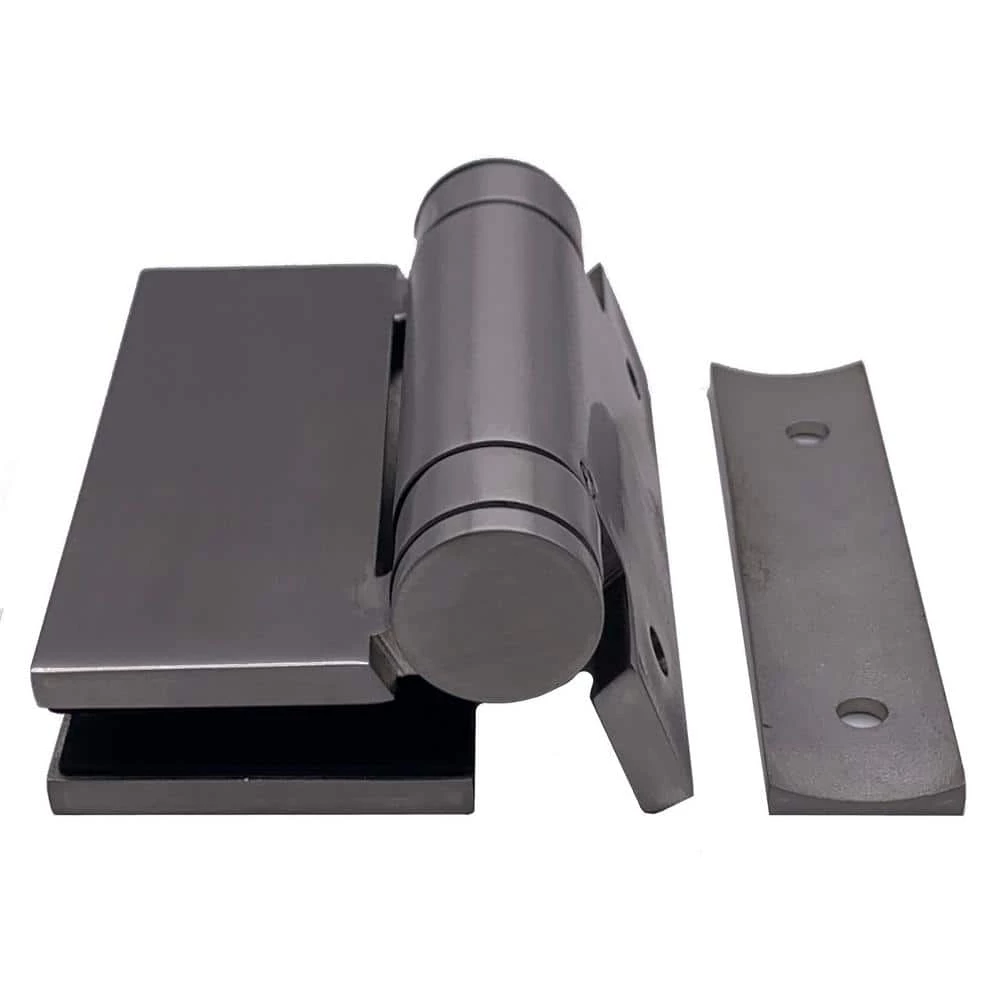

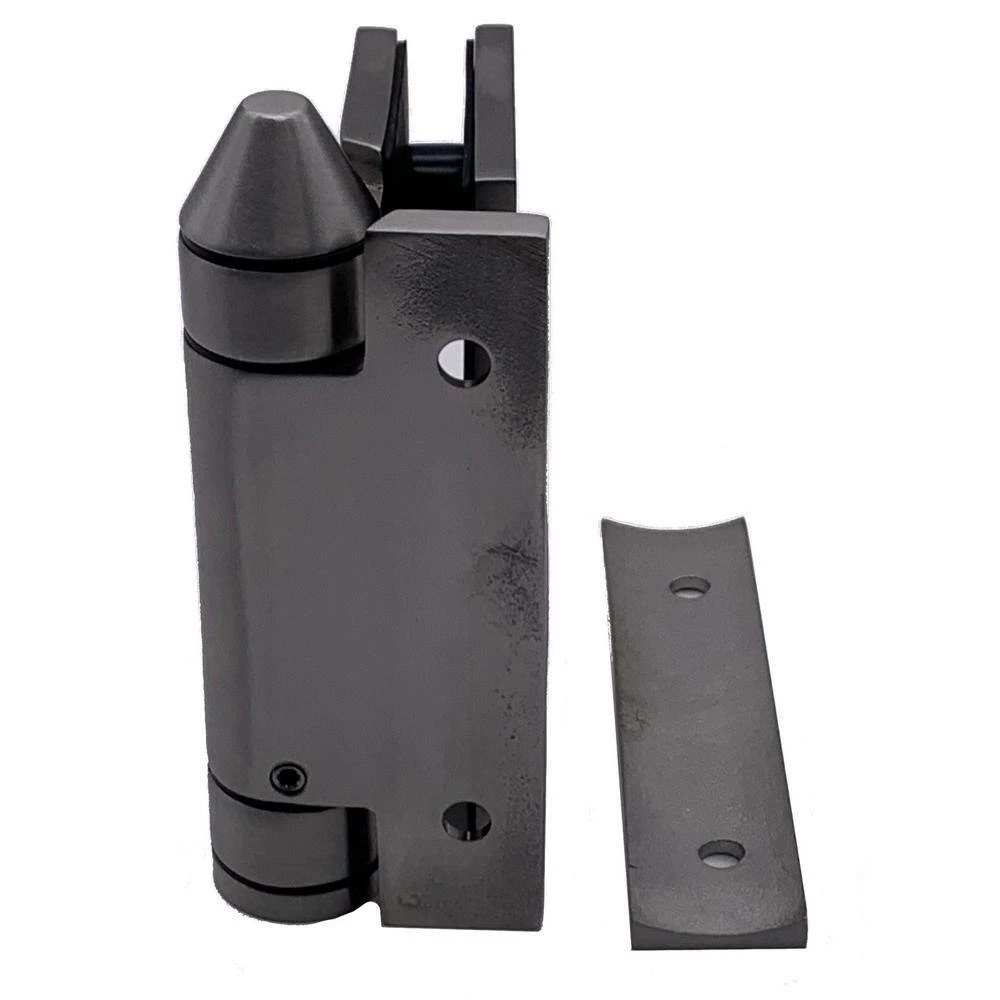

- Included: 1 adjustable 90° wall or post mounting hinge, 1 square post adaptor, 1 round 2 in. Dia post adaptor, 1 PVC rectagular protector, 2 Philips screw M6 x 50 mm L, 2 allen screw M6 x 16 mm L
- Installation must always be done by qualified personnel
