Richelieu Hardware 180-Degree Stainless Steel Glass Panel Connector with Square Ends for Pool Gate

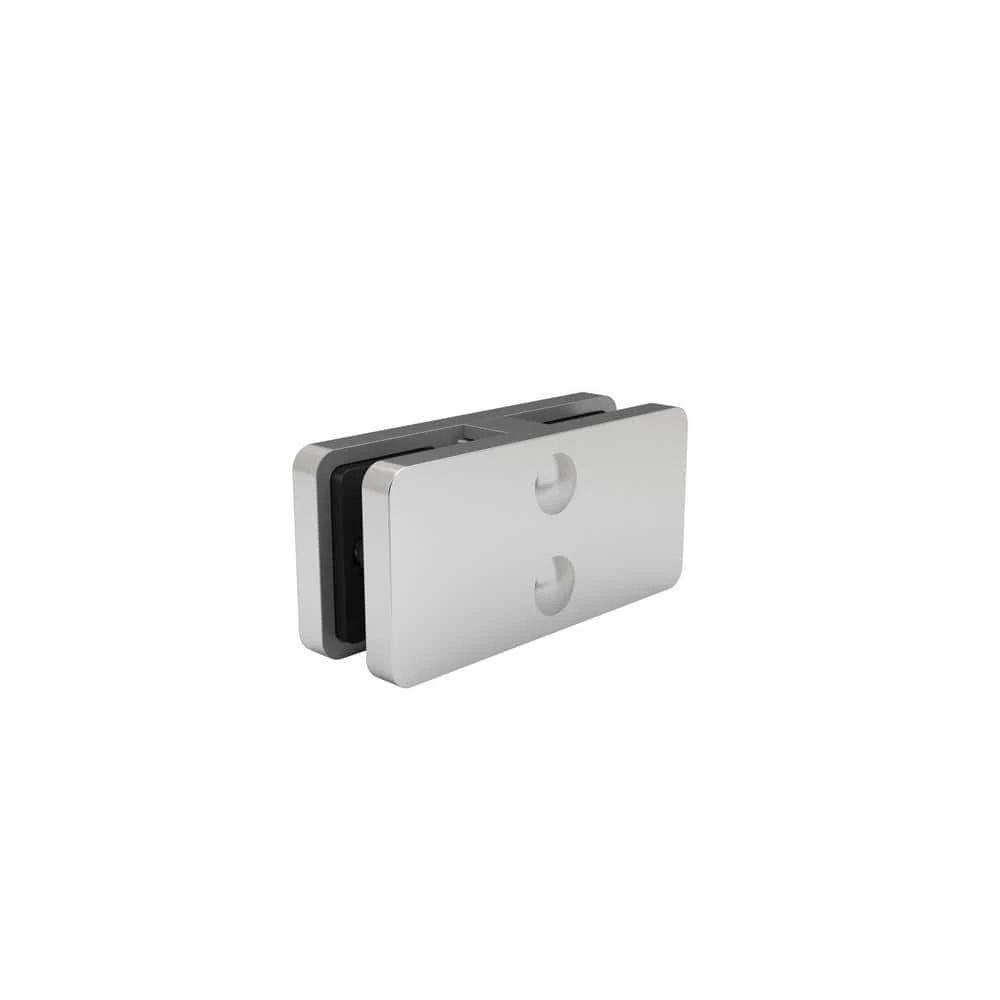

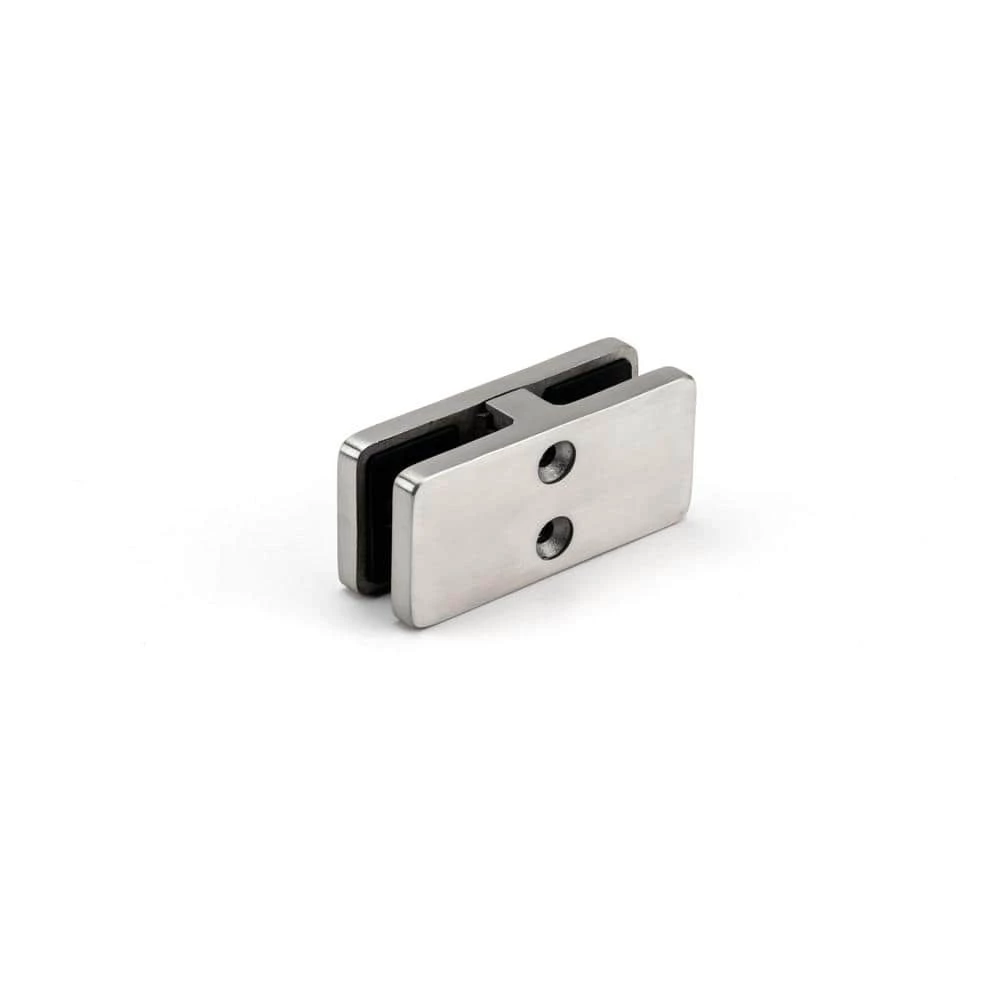

This 180° glass connector with square ends is designed to connect 2 glass panels in a continuous line in a safety glass barrier around a pool or patio. Made of stainless steel, the connector is ideal for all indoor and outdoor glass guardrail projects, such as staircases and balustrades. The connector provides a clear and open view by minimizing visual obstructions, and comes with an optional safety pin to hold the glass in place and prevent it from sliding.

• Fits perfectly with glass railing projects such as staircases and balusters
• Increases glass stability when used with the safety lock pin (requires drilling)
• Provides a clear and open view free of visual obstructions
• Recommended for: interior and exterior usage
• Safety glass thickness: 15/32 in. (12 mm)
• Product dimensions – length x width x Height: 3 3/4 in (95 mm) x 1 3/16 in (29.8 mm) x 1 25/32 in (45 mm)
• Clamp Width: 1 3/16 in (29.8 mm)
• milling diameter for optional safety pin: 13/32 in (10 mm)
• Finish: stainless steel, made of 316 grade stainless steel

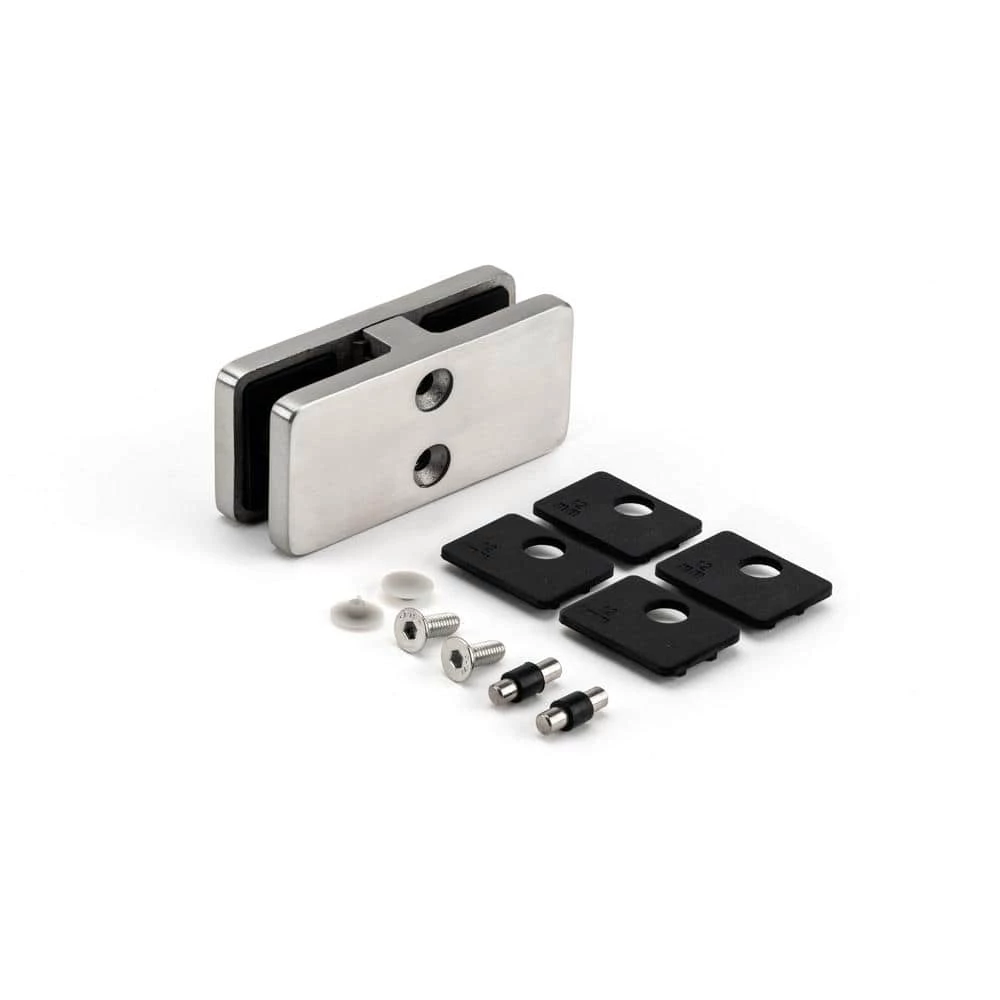

• Included: Stainless steel safety lock pins, gaskets for 12mm glass, screw caps
• Safety purposes, use tempered glass
• Installation must always be done by qualified personnel
