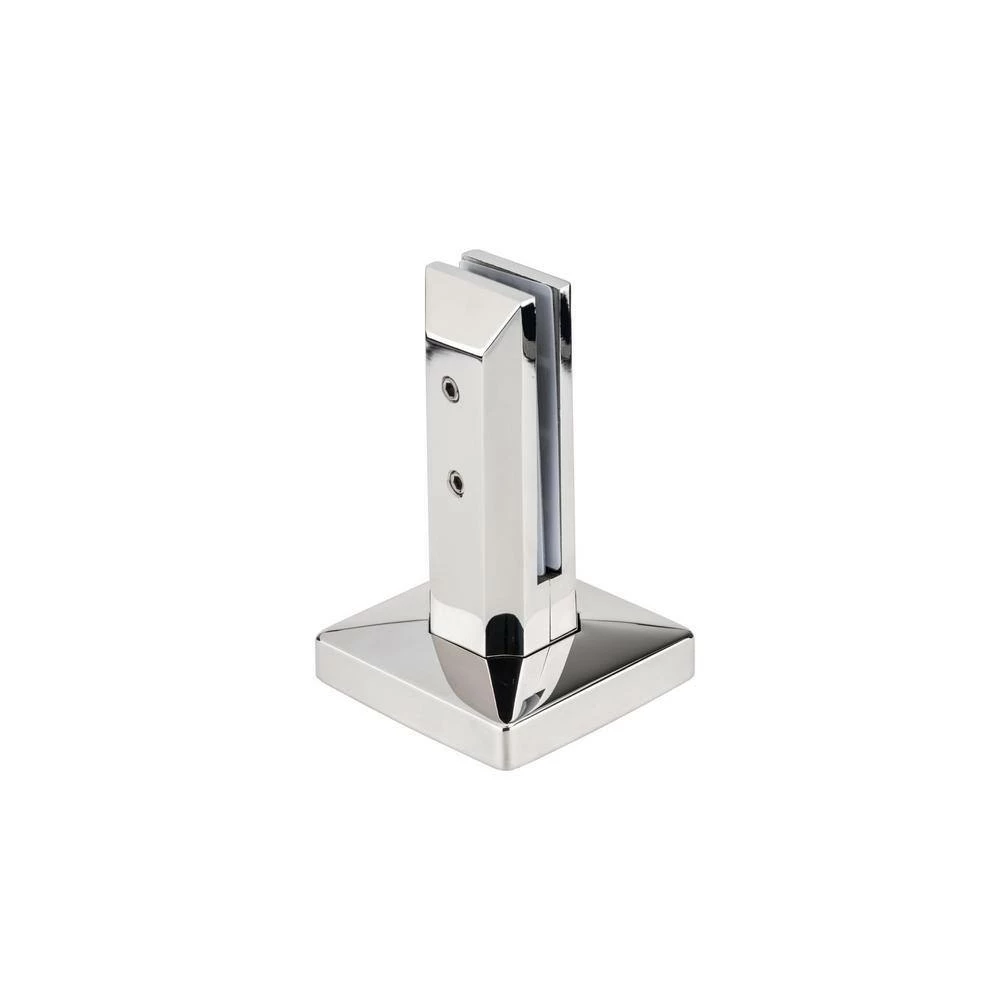

Richelieu Hardware 1/2 in. to 9/16 in. (12 mm to 15 mm) Glass 316 Grade Ploished Stainless Steel Square Pool Gate Bracket with Drilling

This square glass bracket with a drilling and adjustment level screw is designed to meet the increasing safety needs when installing balustrades with laminated glass that require drilling, since compression isn’t enough to keep the glass in place. The bracket has 4 adjustment screws at the base with a stainless steel plate to adjust the level and alignment of a series of panels when the horizontal surface is slightly uneven. These clamps are designed for a surface installation of glass panels, either inside or outside, such as around decks and pools.

• Requires less time for installation
• Ideal for balusters made of laminated glass
• No block torsion when pressure is applied
• Requires glass drilling for use
• Recommended for: interior and exterior usage
• Safety glass thickness: 15/32 in. to 19/32 in. (12 mm to 15 mm)
• Panel width: max 60 in. (1520 mm)
• Panel height: max 47-1/4 in. (1200 mm)
• Product dimensions – height x width x length: 6 13/32 in. (163 mm) x 3-15/16 in. (100 mm) x 3-15/16 in. (100 mm)
• Finish: polished stainless steel, made of 316 grade stainless steel

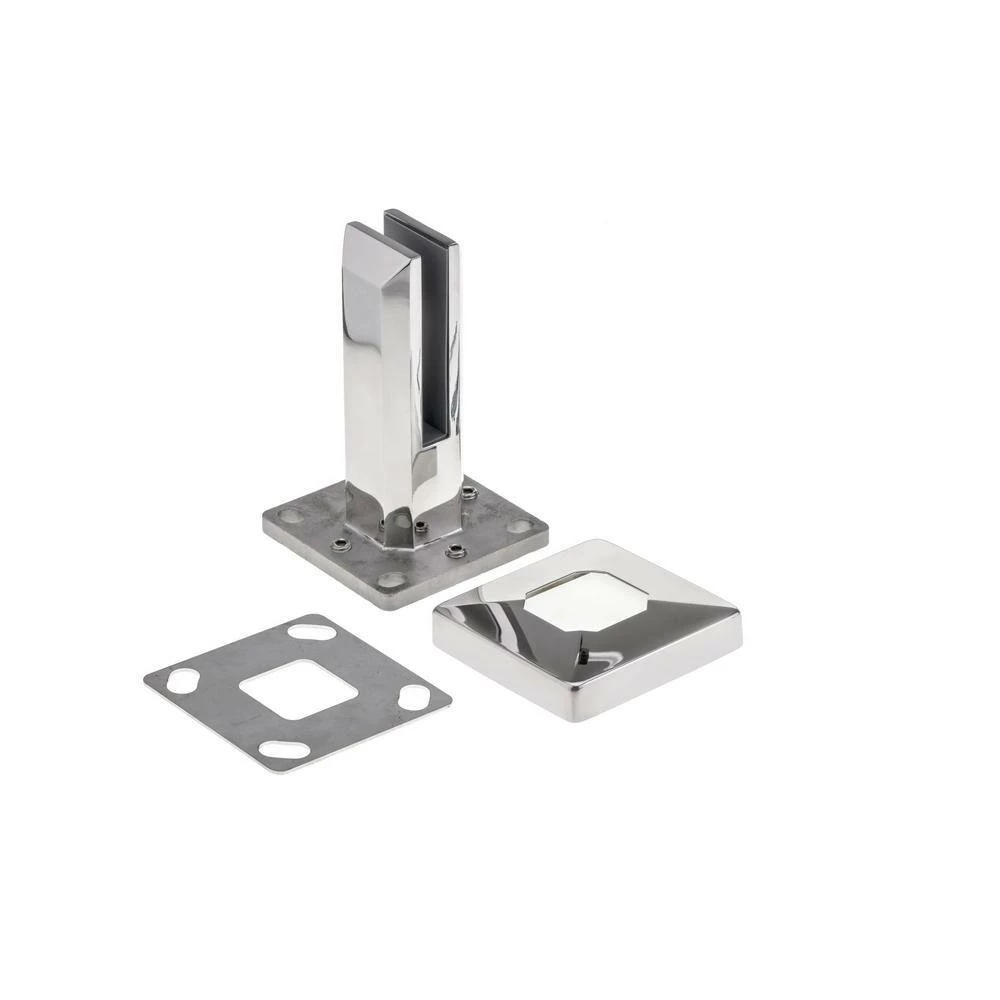

• Included: 1 bracket, 1 finishing plate and mounting hardware
• For safety purposes, use laminated glass
• Installation must always be done by qualified personnel
