Sale!

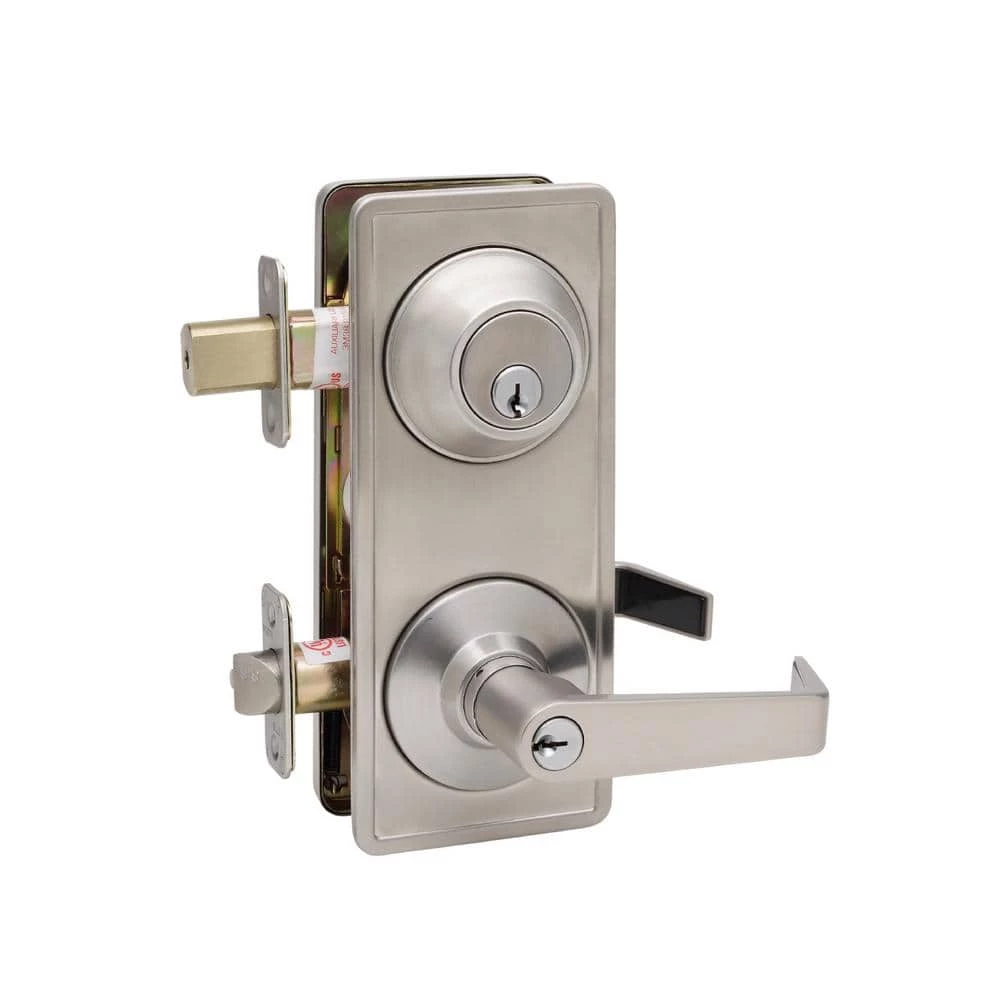

Copper Creek Satin Stainless Grade 2 Interconnect Entry Lever Door Handleset

Original price was: $76.71.Current price is: $53.70.

SKU: Copper Creek 302897259 Categories: Door Hardware, Entry Door Handlesets, Lever Handlesets Tags: ANSI Grade 2 (Better), Copper Creek, Keyed Different, Metal, Straight

The home of quality products.
Sustainable materials, for a better tomorrow.
Quality at its Finest
Fast, friendly, always here to help.

Bulldog interconnected locksets feature simultaneous retraction of the deadbolt when the lever is rotated from the inside. These locksets are manufactured to the highest standards using the finest materials available. They meet ANSI/BHMA grade-2 requirements, are UL listed for 3-hour fire rating and ideal for assisted living, multi-family and tenant improvement construction. These levers feature solid brass cylinders, round corner latches that fit most doors, nickel plated bolts, levers with full return to the door, a decorative matching exterior escutcheon plate and a rich finish. Bulldog interconnected locks are standard replacement for most residential and commercial construction.

Great fit for your privacy door
Satin stainless finish adds class to your home
Heavy duty grade-2
6-pin cylinder
Concealled screws
Made of durable zinc material

Application Type	Privacy
Knob/lever bore hole diameter (in.)	2.125
Backset Size (in.)	2-3/4 in
Deadbolt Bore Hole Diameter (in.)	2.125 in
Deadbolt Cross Bore Diameter (in.)	2.125 in
Deadbolt Strike Height (in.)	2.75 in
Deadbolt Strike Width (in.)	1.125 in
Deadbolt Throw Length (in.)	0.75 in
Deadbolt Trim Ring Diameter (in.)	2.125 in
Handle grip length (in.)	4.5
Inside plate length (in.)	8
Inside plate width (in.)	3.25
Knob/lever cross bore diameter (in.)	2.125
Assembled Height (in.)	3.500 in
Knob/lever housing height (in.)	8
Knob/lever housing width (in.)	2
Knob/lever strike height (in.)	2.25
Knob/lever strike width (in.)	2.25
Knob/lever throw length (in.)	4.5
Lever Grip Length (in.)	4.5 in
Maximum Door Thickness (in.)	2
Minimum Door Thickness (in.)	1.375
Outside handle and key plate length (in.)	8
Outside handle and key plate width (in.)	3.125
Outside handle plate on-center measurement (in.)	4
Assembled Width (in.)	7.400 in
Assembled Depth (in.)	8.200 in
Commercial/Residential	Commercial
Included	No Additional Items Included
Deadbolt Type	One-sided Keyless Deadbolt
Deadbolt strike	Square corner
Door Handing	Universal
Door Lock Style	Classic
Door Locks & Knobs Product Type	Keyed Handlesets
Electronic/Mechanical	Mechanical
Features	No Additional Features
Finish	Satin Stainless Finish
Handleset Product Type	1 Piece Front & Back
Hardware Color Family	Silver
Hardware Finish Family	Stainless Steel
Interior/Exterior	Interior/Exterior
Manufacturer Warranty	Limited Lifetime
Keying Type	Keyed Different
Keyway	KW1
Knob/lever strike	Full round
Lever style	Straight
Lock Type	Keyed
Material	Metal
Product Weight (lb.)	4.67
Returnable	90-Day
Security/ANSI Grade	ANSI Grade 2 (Better)
Total Number of Keys Included	2
Certifications and Listings	ANSI Certified
Projection (in.)	2.625
