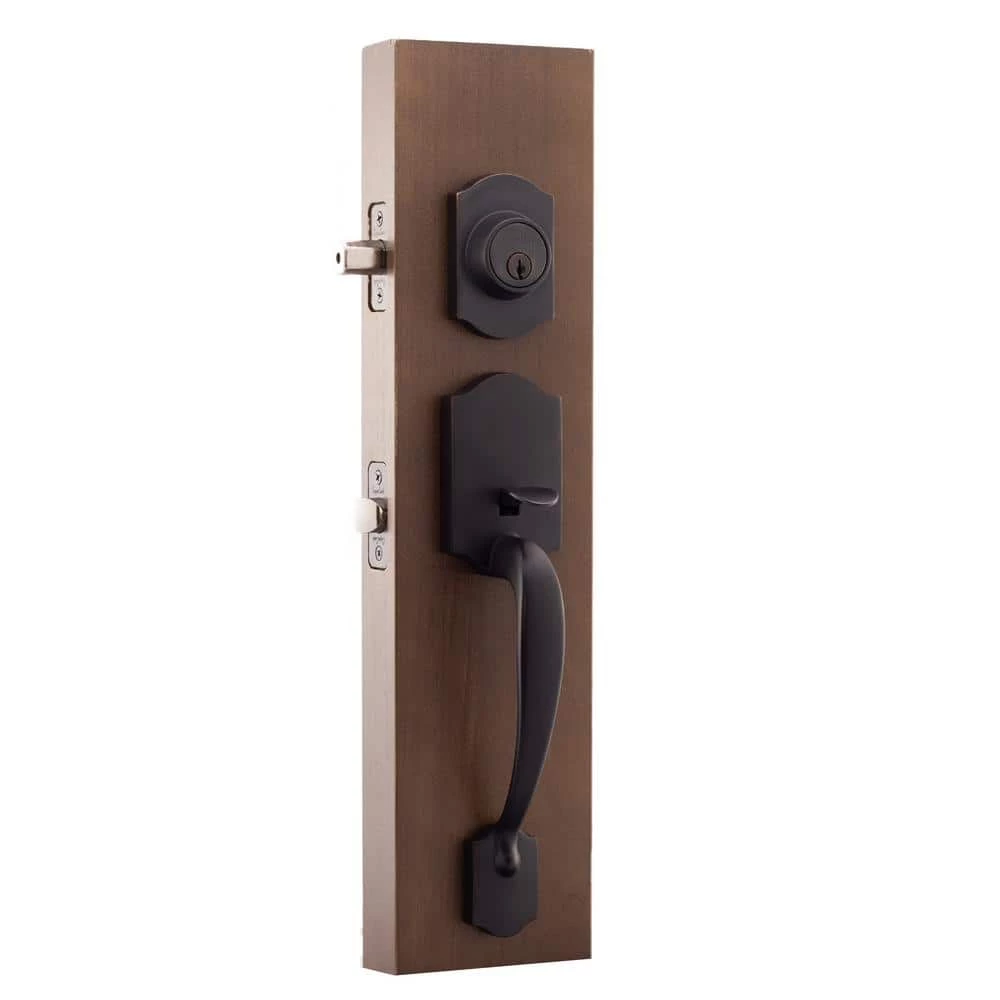

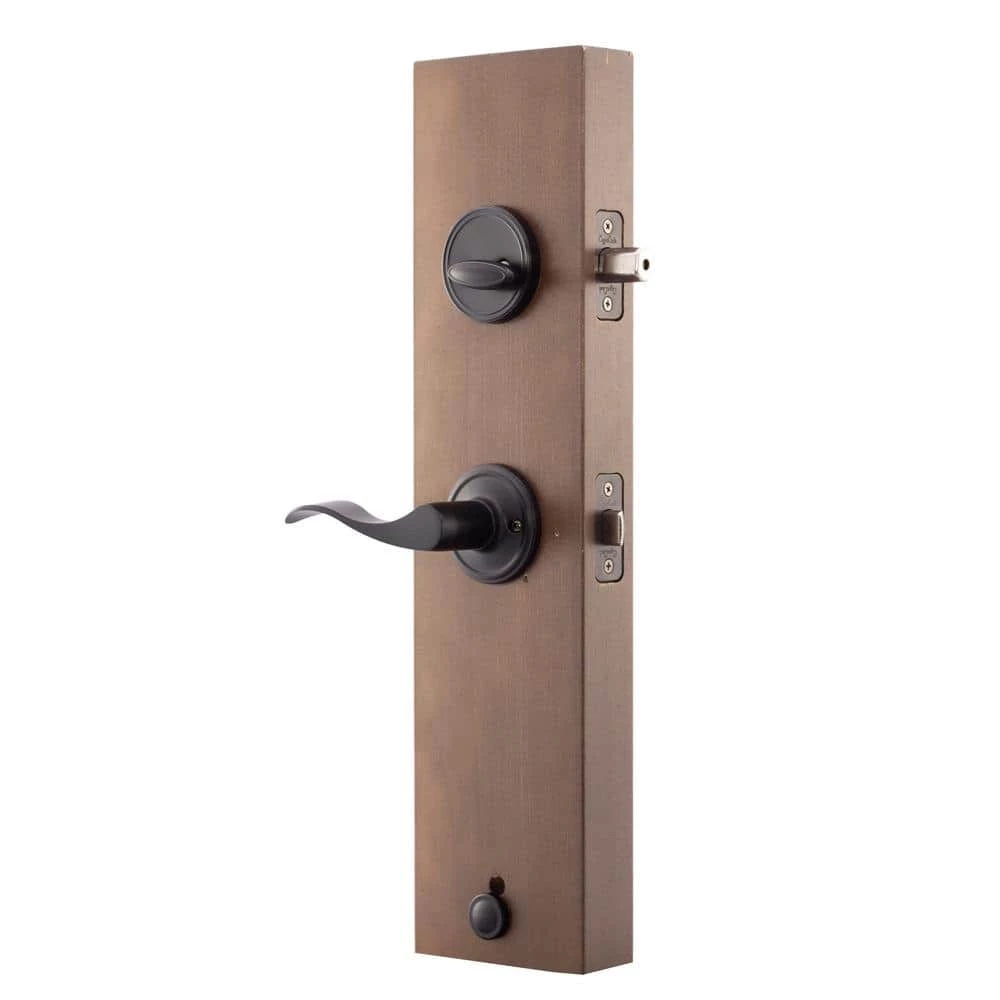

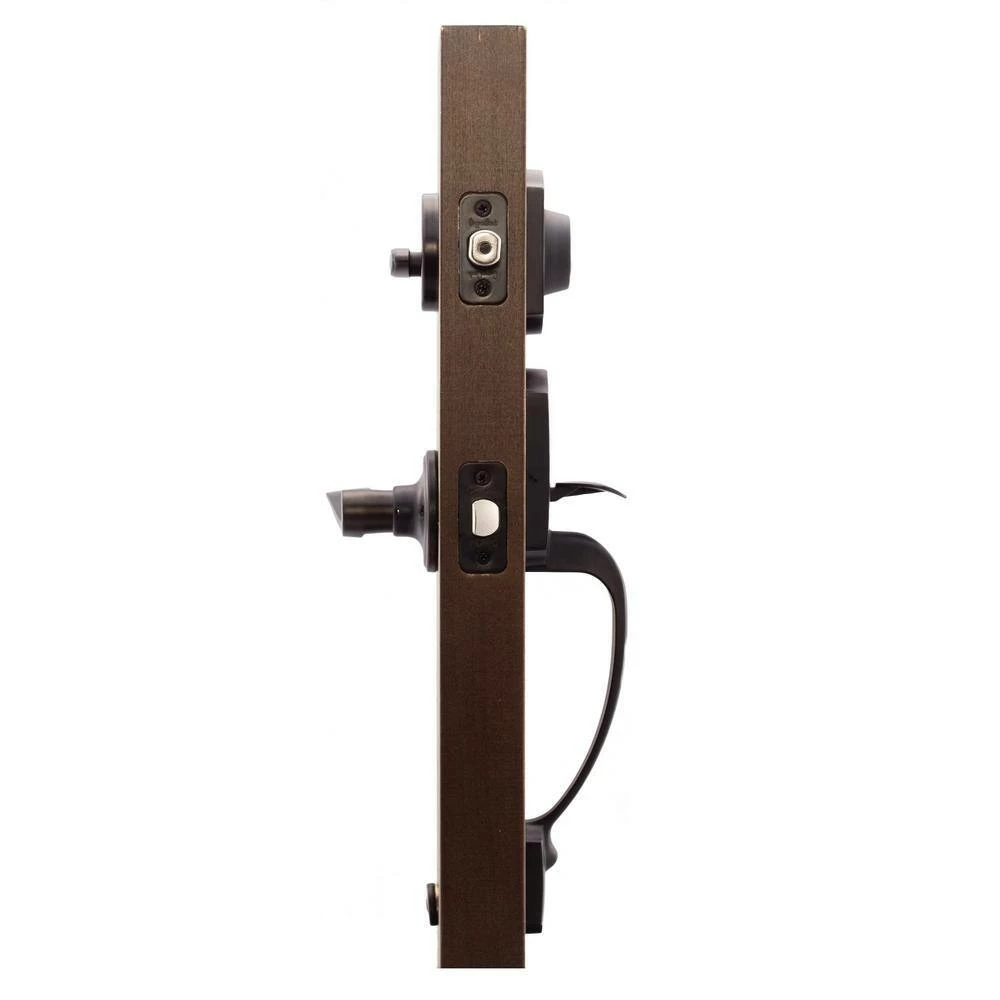

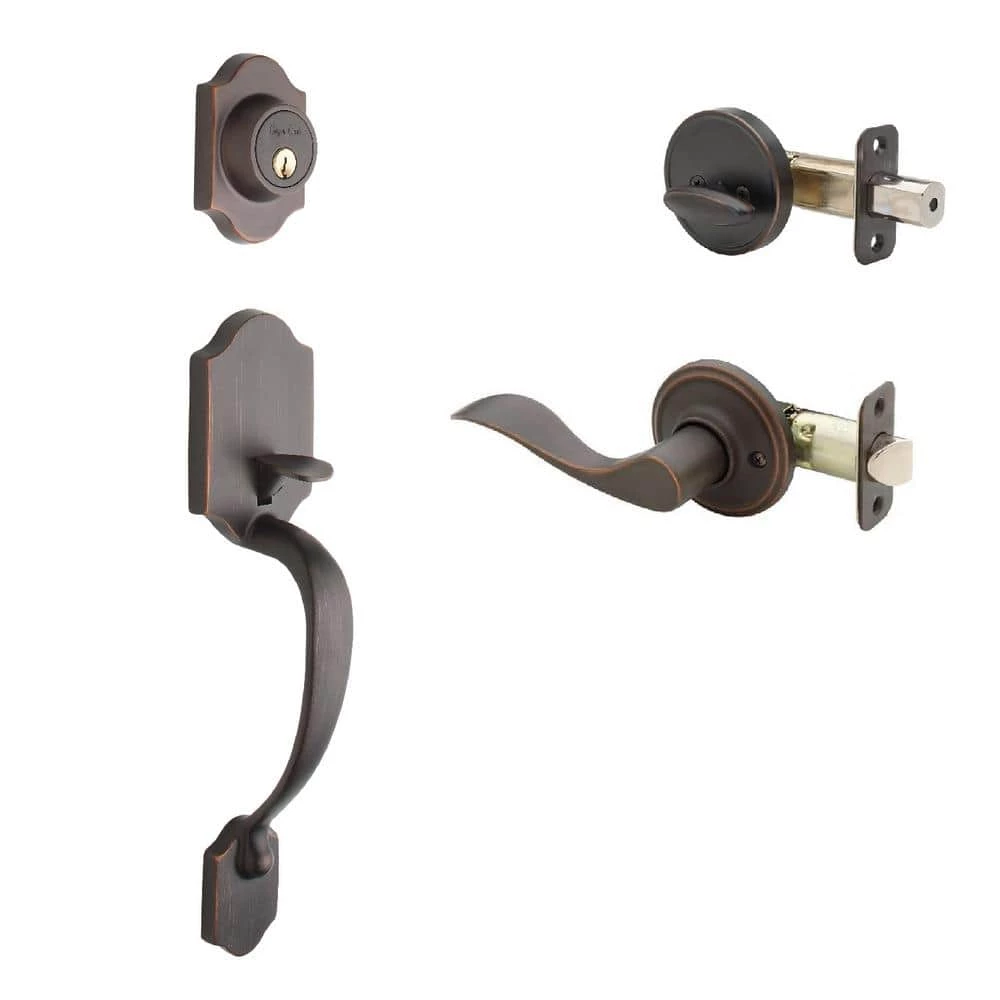

Copper Creek Heritage Tuscan Bronze Door Handleset and Waverlie Handle Trim
Original price was: $68.78.$46.77Current price is: $46.77.
- The home of quality products.
- Sustainable materials, for a better tomorrow.
- Quality at its Finest
- Fast, friendly, always here to help.
Copper Creek Colonial Handle Sets in Satin Stainless finish provide excellent value. These handle sets are available with multiple trim options including ball, colonial and egg knobs as well as Waverlie, Georgia, Modern and Verona levers. Manufactured to the highest standards using the finest materials available, they are time tested to meet the toughest national building codes for new construction. Standard cross bore hole spacing is 5-1/2 but will fit from 4-1/2 ft. and up. The interior trims feature a full 1-throw deadbolt, an ADA decorative turn piece, round corner faceplate adjustable latches and rich finish to match. This handle set is standard replacement for most residential construction and meets ANSI/BHMA grade-3.
- Great fit for your privacy door
- Tuscan bronze finish adds class to your home
- Heavy duty grade-2
- Sold cast constructions
- Easy to install
- Round corner adjustable latches
| Application Type | Privacy |
|---|---|
| Knob/lever housing width (in.) | 2.5 |
| Deadbolt Cross Bore Diameter (in.) | 2.125 in |
| Deadbolt Strike Height (in.) | 2.25 in |
| Deadbolt Strike Width (in.) | 1 in |
| Deadbolt Throw Length (in.) | 1 in |
| Deadbolt Trim Ring Diameter (in.) | 2.5 in |
| Handle grip length (in.) | 7 |
| Inside top plate length (in.) | 2.5 |
| Inside top plate width (in.) | 2.5 |
| Knob/lever bore hole diameter (in.) | 2.125 |
| Knob/lever cross bore diameter (in.) | 2.125 |
| Knob/lever housing height (in.) | 2.5 |
| Knob/lever strike height (in.) | 2.25 |
| Backset Size (in.) | Adjustable |
| Knob/lever strike width (in.) | 2.25 |
| Knob/lever throw length (in.) | .5 |
| Lever Grip Length (in.) | 4.75 in |
| Maximum Door Thickness (in.) | 2 |
| Minimum Door Thickness (in.) | 1.375 |
| Outside bottom handle plate length (in.) | 2.5625 |
| Outside bottom handle plate width (in.) | 1.625 |
| Outside key plate length (in.) | 3.625 |
| Outside key plate width (in.) | 2.375 |
| Outside top handle plate length (in.) | 4.375 |
| Outside top handle plate width (in.) | 2.75 |
| Deadbolt Bore Hole Diameter (in.) | 1 in |
| Assembled Width (in.) | 4 in |
| Commercial/Residential | Residential |
| Included | No Additional Items Included |
| Deadbolt Type | Single Cylinder Deadbolt |
| Deadbolt strike | Full round |
| Door Handing | Universal |
| Door Lock Style | Classic |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Electronic/Mechanical | Mechanical |
| Features | No Additional Features |
| Finish | Tuscan Bronze |
| Handleset Product Type | 1 Piece Front & Back |
| Hardware Color Family | Bronze |
| Hardware Finish Family | Bronze |
| Keying Type | Keyed Different |
| Assembled Height (in.) | 18 in |
| Keyway | KW1 |
| Knob/lever strike | Round corner |
| Lever style | Straight |
| Lock Type | Keyed |
| Material | Zinc |
| Product Weight (lb.) | 3.3 |
| Returnable | 90-Day |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Total Number of Keys Included | 2 |
| Certifications and Listings | ANSI Certified |
| Manufacturer Warranty | Limited Lifetime |
| Assembled Depth (in.) | 4 in |
| Projection (in.) | 2 |
